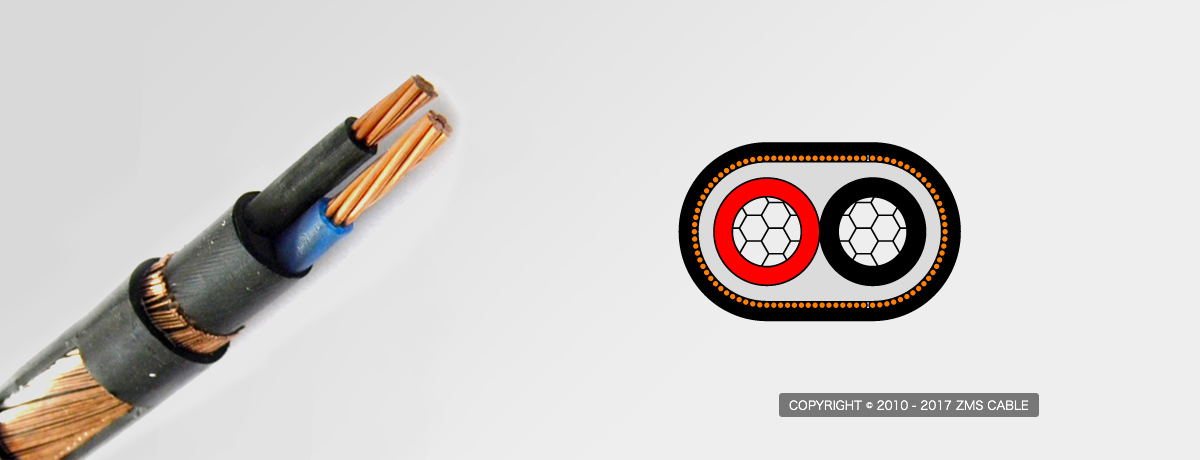

Aluminum Copper Concentric Cable

Concentric Cable, Aluminum Copper Concentric Cable, 2*10mm2 Concentric Cable, 2*16mm2 Concentric Cable, 2*10mm2, 2x16mm2 PVC Concentric Cable, Round Concentric Cable

Concentric cables consist of a single or multi-core conductor with an insulation layer between the multi-core conductors that effectively prevents electromagnetic interference between the two conductors.

Concentric cables produced by ZMS are typical of the high quality of most cable insulation types.

Concentric cables are often used as energy supply cables and are most common in power distribution, panels, and street lighting.

ZMS Cable company mainly provides complete supply services for distributors and suppliers all over the world. Consulting services, purchasing services, transportation services, and after-sales services are included.


Description of ZMS Cable Products

Concentric conductor cables are suitable for use in dry and wet locations, they can be buried directly underground or used outdoors.

Their maximum operating temperature is 70°C (PVC or PE insulation) or 90°C (XLPE insulation) and their service voltage in applications is 600V.

The armor layer of the armored concentric conductor cable gives it better mechanical strength.

When it is buried in the ground, it improves the cable's ability to withstand pressure, reduces damage from external forces, and ensures the proper efficiency of the cable and linked equipment.

Copper Split Concentric LSZH Cable

This type of cable is used when the distribution network operator (DNO's) provides the final connection to the home property. It is also suitable for secondary distribution, especially for use in high-rise buildings and street lighting systems.

Voltage Rating (Uo/U): 0.6/1kV

Temperature Rating: -15°C to +70°C

Minimum Bending Radius: 15 x overall diameter

Conductor: Class 2 stranded copper

Insulation: XLPE (Cross-Linked Polyethylene)

Neutral Conductor: Plain copper wires covered by a blue polymeric compound

Earth Continuity Conductor: Plain copper wires

String Separator: Non-hydroscopic separator

Sheath: LSZH (Low Smoke Zero Halogen)

Sheath Colour: Black

Standards: Generally to BS 7870-3-21, EN 60228, Flame Retardant according to IEC/EN 60332-1-2

Aluminium Concentric PVC Cable

This cable is also used by Distribution Network Operators (DNOs) when providing final connections to domestic properties.

It is also suitable for sub-trunk distribution, especially for use in high-rise buildings and street lighting systems.

Voltage Rating (Uo/U): 0.6/1kV

Temperature Rating: -15°C to +70°C

Minimum Bending Radius: 8 x overall diameter

Conductor: Class 1 solid Aluminium

Insulation: XLPE (Cross-Linked Polyethylene)

Concentric Neutral / Earth Conductor: Single layer of plain copper wires

Sheath: PVC (Polyvinyl Chloride)

Sheath Colour: Black

Standards: BS 7870-3-11, EN 60228, Flame Retardant according to IEC/EN 60332-1-2

Aluminium Split Concentric LSZH Cable

This cable is also used by Distribution Network Operators (DNOs) when providing final connections to domestic properties.

Also applicable to sub-trunk distribution, especially for use in high-rise buildings and street lighting systems.

Voltage Rating (Uo/U): 0.6/1kV

Temperature Rating: -15°C to +70°C

Minimum Bending Radius: 8 x overall diameter

Conductor: Class 1 solid aluminum conductor

Insulation: XLPE (Cross-Linked Polyethylene)

Neutral Conductor: Plain copper wires covered with a blue polymeric compound

Earth Continuity Conductor: Plain copper wires

String Separator: Non-hygroscopic separator

Sheath: LSZH (Low Smoke Zero Halogen)

Sheath Colour: Orange

Three/Four Core Concentric Cable

Conductor: Aluminum / Copper Conductor

Insulation: XLPE

Core: Three / Four core

Cable Inner Sheath: PVC

Concentric Conductor Layer: Copper/Aluminum

Cable Tape: No-absorbent Material or OEM

Cable Outer Sheath: XLPE / PVC / PE


Application

The Aluminum Copper Concentric cables are for the service entrance.

Service Conditions: The Aluminum Copper Concentric cable shall be a service cable for continuous operation outdoors and under tropical conditions(temperature range of -1℃ to +40℃, the humidity of up to 90%, and saline conditions along the coast), suitable for laying in cable ducts and in air, permissible continuous loading operating temperature shall be 70℃ and short circuit temperature of 160℃.


Other Cable Type

Size: 2x8mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2

Single-core type round with full neutral entrance cable

Single-core type round with less neutral entrance cable

Single-core type round with full neutral and communication cores entrance cable

Copper Split Concentric BS 7870 PVC Cable

Aluminium Concentric BS 7870 LSZH Cable

Advantages:

1. Factory direct sale

2. Cable manufacturer, ISO, CE

3. Abundant experiences, high quality, and cheap price

4. Free cable sample


Service of ZMS Company

If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable.

You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc.

We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.



Technical Data:

Core and
Nominal
Cross
Section

Conductor

Insulation
thickness

Concentric
conductor

Thickness of cable shield

Overall cable diameter

Weight
Of cable

Max DC resistance of conductor(20°C)




mm2

Number

Diameter

mm

Number

Diameter
mm

mm

mm

Kg/km

Ω/km

Ω/km
(Concentric)

Copper conductor (IEC Standard)











2*10

7

1.35

1.55

20

0.85

1.40

11.80

290

1.83

1.90

2*16

7

1.70

1.55

32

0.85

1.40

12.84

420

1.15

1.20

2*25

7

2.14

1.60

29

1.13

1.50

15.02

630

0.727

0.76

2*35

19

1.53

1.65

27

1.35

1.60

17.00

832

0.524

0.55

Aluminum alloy conductor (IEC standard)











2*10

7

1.35

1.55

23

1.13

1.40

12.41

192

3.08

1.335

2*16

7

1.70

1.55

26

1.13

1.40

13.46

230

1.91

1.808

2*25

7

2.14

1.6

29

1.13

1.50

15.08

290

1.20

1.0586

2*35

19

1.53

1.65

27

1.35

1.60

17.05

0.868

0.868

0.7966



Concentric Cable
