Although concentric cable may sound like it has only one conductor, it comes in many types.
Such as two concentric copper conductors
The concentric cables are for the service entrance.
Service conditions: The aluminum concentric cable shall be a service cable for continuous operation outdoors and under tropical conditions(temperature range of -1℃ to +40℃, humidity of up to 90%, and saline conditions along the coast), suitable for laying in cable ducts and in air, permissible continuous loading operating temperature shall be 70℃ and short circuit temperature of 160℃.
BS7870 BS6746 KS04-1022
Rated Voltage: 600/1000V
Conductor: Solid or stranded Al conductor
Insulation: PVC
Neutral Conductor: Helically Al wire with coverage 100% and non-100% coverage with two core copper communication cable
Cable Wrapping Tape: Non-absorbent material
External Coverage: Weather-resistant material PVC Construction
Size: 2x8mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2

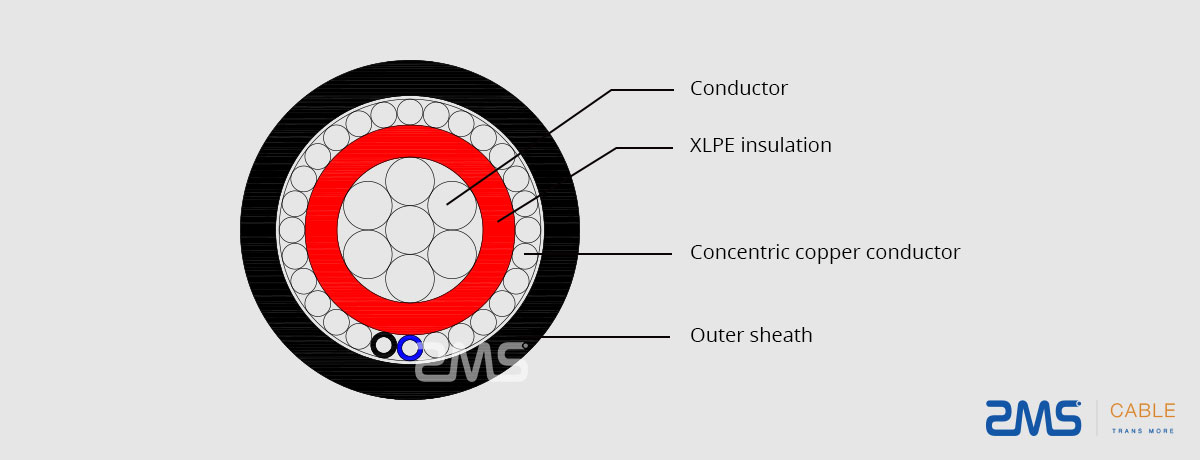

Single-core type round with full neutral entrance cable
Single-core type round with less neutral entrance cable
Single-core type round with full neutral and communication cores entrance cable
1. Factory direct sale
2. Cable manufacturer, ISO, CE
3. Abundant experiences, high quality, and cheap price
4. Free cable sample
ZMS Cable Group has a wide product scope, including Power cables up to 500kV, AAC, AAAC, ACSR conductors, ABC overhead cable, electric wires, control cable, instrument cable, telecommunications cable, and Stay wires.
With advanced manufacturing technology, rich human resource, and an effective management system, we guarantee all products are manufactured strictly in accordance with GB, IEC, BS, NFC, ASTM, DIN standards, etc.
Beyond quality control, ZMS has been trying its best to offer a much higher standard of services rather than expected.
Core and | Conductor | Insulation | Concentric | Thickness of cable shield | Overall cable diameter | Weight | Max DC resistance of conductor(20°C) | |||
mm2 | Number | Diameter | mm | Number | Diameter | mm | mm | Kg/km | Ω/km | Ω/km |
Copper conductor (IEC Standard) | ||||||||||
2*10 | 7 | 1.35 | 1.55 | 20 | 0.85 | 1.40 | 11.80 | 290 | 1.83 | 1.90 |
2*16 | 7 | 1.70 | 1.55 | 32 | 0.85 | 1.40 | 12.84 | 420 | 1.15 | 1.20 |
2*25 | 7 | 2.14 | 1.60 | 29 | 1.13 | 1.50 | 15.02 | 630 | 0.727 | 0.76 |
2*35 | 19 | 1.53 | 1.65 | 27 | 1.35 | 1.60 | 17.00 | 832 | 0.524 | 0.55 |
Aluminum alloy conductor (IEC standard) | ||||||||||
2*10 | 7 | 1.35 | 1.55 | 23 | 1.13 | 1.40 | 12.41 | 192 | 3.08 | 1.335 |
2*16 | 7 | 1.70 | 1.55 | 26 | 1.13 | 1.40 | 13.46 | 230 | 1.91 | 1.808 |
2*25 | 7 | 2.14 | 1.6 | 29 | 1.13 | 1.50 | 15.08 | 290 | 1.20 | 1.0586 |
2*35 | 19 | 1.53 | 1.65 | 27 | 1.35 | 1.60 | 17.05 | 0.868 | 0.868 | 0.7966 |
