Instrument cables are used for signal transmission and control lines in meters, instruments, and other electrical equipment.
Instrumentation cable is typically installed indoors and is suitable for humid environments.
In industry, it is commonly used for communication, data, voice transmission signals and services, and for the interconnection of electrical equipment and instruments.
Cable instruments are also available as armored instrument cables and unarmored instrument cables.
The non-armored ones are generally used for indoor installation and are suitable for wet areas.
They are mainly used for communication, data, and voice transmission signals and services within industrial process manufacturing plants, also used for interconnection of electrical equipment and instruments, usually in the oil industry.
Armored instrumentation cables are widely used between inverter power supplies and inverter motors.
Armored LSZH cable versions are generally used when there is an increased risk of mechanical damage.
The galvanized steel wire armor provides excellent protection.

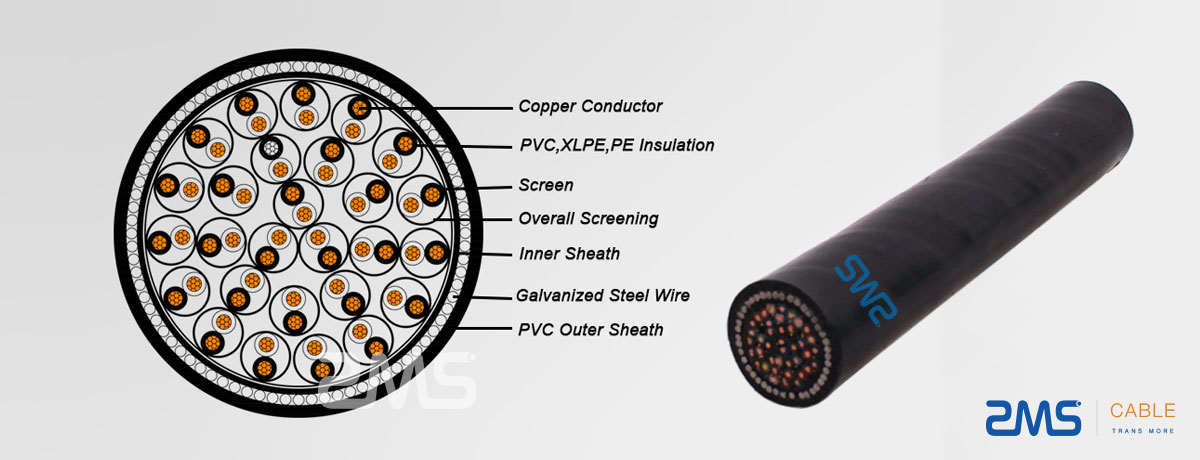

CONSTRUCTION
Conductor: Annealed or tinned copper
Insulation: XLPE (cross-linked polyethylene) or PE
Pairing: Two insulated wires are twisted together uniformly, and the laying distance does not exceed 100 mm
Binding tape: PETP transparent tape
Collective shielding: Paste aluminum/polyester tape on paired metal pairs and make contact with tinned copper drain wire, thickness 0.5 mm ^ 2
Inner Sheath: LSZH (Low Smoke Zero Halogen) Sheath
Amour: Galvanized steel armor
Outer Sheath: LSZH (Low Smoke Zero Halogen) Sheath is flame retardant, conforms to IEC60332-3-22, halogen-free, conforms to IEC60754-1, low smoke emissions, conforms to IEC61034-1-2
Sheath Color: Black or blue
Standard: BS / PAS 5308, BS EN 60228, BS 6234, BS EN 50363, BS EN / IEC 60332-1, BS EN / IEC 60332-3-24
This cable for instrumentation is suitable for use in signal transmission and control circuits for instruments and other electrical equipment.
The non-armored ones are generally used for indoor installations and are suitable for wet and humid areas.
There are also communications, data, and voice transmission signals and services within industrial process manufacturing plants, and also for the interconnection of electrical equipment and instruments, typically used in the oil industry.
Instrument Cable Specification
CONSTRUCTION
Conductor: Annealed or tinned copper
Insulation: PVC(Polyvinyl Chloride), XLPE(Cross-linked Polyethylene), PE(Polyethylene)
Pairing: Two or three insulated conductors uniformly twisted together with a lay not exceeding 100 mm
Color Code: See technical information
Binder Tape: PETP transparent tape
Sheath: PVC Sheath
Sheath Color: Black or blue
Standard: IEC 60502, BS 5308, GB 9330
BS 5308 Instrument wires are designed to carry communication and control signals in a variety of installation types, including the petrochemical industry.
Signals can be analog, data, or voice-type signals and can come from a variety of sensors such as pressure, proximity, or microphones.

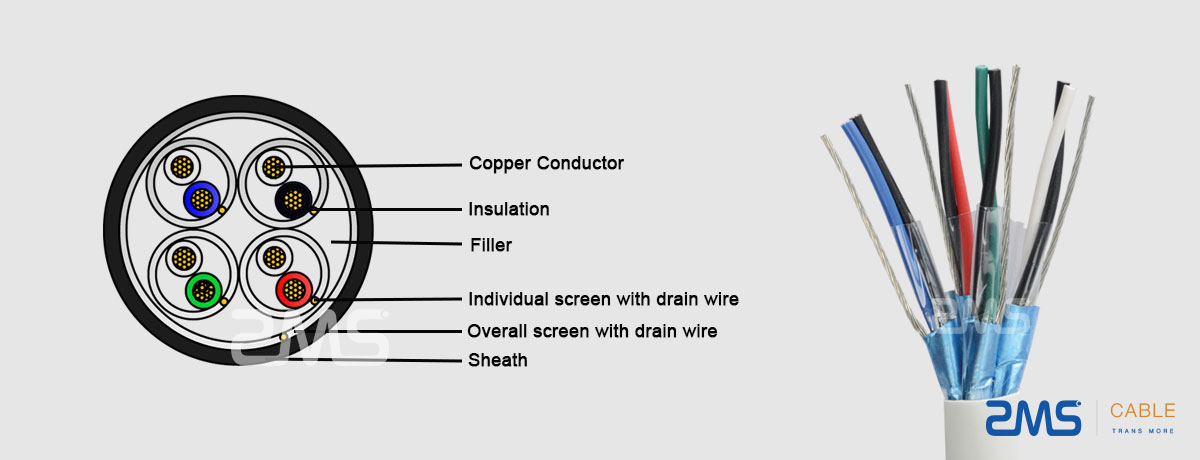

CONSTRUCTION
Conductor: Bare copper or tinned, copper
Insulation: PE (polyethylene)
Pairing: Two insulated wires are twisted together uniformly, and the laying distance does not exceed 100 mm
Binding Tape: PETP transparent tape
Collective Shielding: Paste aluminum/polyester tape on the stack of metal pairs and make contact with tin-plated copper drain wire, thickness 0.5 mm ^ 2
Jacket: PVC sheath
Sheath Color: Black or blue
Standard: BS / PAS 5308, BS EN 60228, BS 6234, BS EN 50363, BS EN / IEC 60332-1, BS EN / IEC 60332-3-24
APPLICATION
For interconnections between instruments, sensors, and monitors.
Overall screened with specially selected lay schemes in order to counter static and cross-talk noises. A “clean” and accurate signal can therefore be expected to be transferred. APL Armouring is provided for increased mechanical protection.
CHARACTERISTICS
Voltage Rating: 300/500V
Maximum Operating Temperature: +105℃
Minimum Bending Radius: 9x Overall Diameter
CONSTRUCTION
Conductor: Stranded annealed bunched copper
Insulation: XLPE (Cross-Linked Polyethylene)
Overall Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Bedding: PVC (Polyvinyl Chloride)
Armoring: APL (Aluminium Polyethylene Laminated) with bunched tinned copper drain wire
Sheath: PE (Polyethylene)
Core Identification
Pairs: White Black, numbered
Triples: White Black Red, numbered
Outer Sheath Color: Black
APPLICATION
These cables are designed for safe use in petroleum and petrochemical units, particularly for the transmission of AC or DC analog signals.
Suitable for aliphatic hydrocarbon resistance applications and direct burial applications, with a flame retardant, sunlight, mineral oil, and hydrocarbon resistant sheath.
CHARACTERISTICS
Voltage Rating: (Uo/U) 300/500V
Temperature Rating: +5°C to +50oC
Operating Temperature: +90°C
CONSTRUCTION
Conductor
Class 1: solid copper conductor
Class 2: stranded copper conductor
Insulation: PVC (Polyvinyl Chloride)
Binder Tape: PET (Polyester Tape)
Collective Screen: AL/PET (Aluminium/Polyester Tape)
Inner Sheath: PVC (Polyvinyl Chloride)
Armour: Double steel tape
Sheath: PVC (Polyvinyl Chloride)
Our best instrument cable conductor products comply with British and international standards including British Standard BS5308 instrumentation cable, French Standard NF M87-202, European Standard BS EN 50288-7, and US UL Standard PLTC cables.
Our instrument cable wire suppliers also design and manufacture shielded braided instrument cables to meet the specific requirements of our customers for their applications in the oil, gas, petrochemical, automation, process control, and marine and offshore industries.
Regarding instrumentation shielded cable variants, these include individual and collective shielding.
They can all be insulated with polyethylene (PE), cross-linked polyethylene (XLPE), polyvinyl chloride (PVC), or silicon (Si).
They are also usually available with a PVC outer sheath or Low Smoke Zero Halogen (LSZH) sheath for areas where smoke and acid gas emissions from fires can cause serious problems.
ZMS cables can also be steel wire armored or steel tape armored to provide protection against mechanical stress.
If you don't know how to choose the right cable product, or if you don't find the type and size of cable you need on this page.
You can send us your requirements and we can help you choose the right cable and custom best cheap instrument cables.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shielding type, armor type, etc.
Or you can also provide the cable installation environment, application requirements, etc.
We will serve you wholeheartedly. We help you with one-stop project solution services and fast product delivery solutions.
As an international electric cable manufacturer of instrumentation cables and other shielded instrumentation cables designed for signal integrity, we are ready to assist our customers in selecting the right cable to help provide the best high quality bulk instrument cable and the best solution for their cable purchase.
We also offer other cable accessories such as instrument cable adapters, a one-stop shop to save our customers time and unnecessary hassle.
The packaging of ZMS cables is provided in wooden rolls, corrugated cartons, and reels.
The cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.
We can print the required markings on the outside of the drums with waterproof material according to the customer's requirements.
| Conductor | Annealed or tinned copper, sizes: 0.5mm2 and 0.75mm2 multistranded(Class 5), |
| 0.5 mm2, 1.0 mm2 solid(Class 1), 1.5mm2 or 2.5mm2, multistranded(Class 2) to BS6360 | |
| Insulation | PE (Polyethylene) type 03 to BS6234 |
| Pairing | Two or three insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Color code | See technical information |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminum/polyester tape is applied over the laid-up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2 |
| Outer sheath | PVC Sheath, type TM 1 or type 6 to BS 6746 |
| Sheath color | Black or blue |
