LAN stands for Local Area Network. A LAN is a group of computers and devices located in a specific location.
These devices are connected to the LAN using an Ethernet cable or via Wi-Fi.
If your PC, tablet, Smart TV, and wireless printer are connected via Wi-Fi, these connected devices are part of your LAN. Only devices that you authorize can access your LAN.
This product is your special cable when you use LAN——Lan Cable, also known as Ethernet cables.

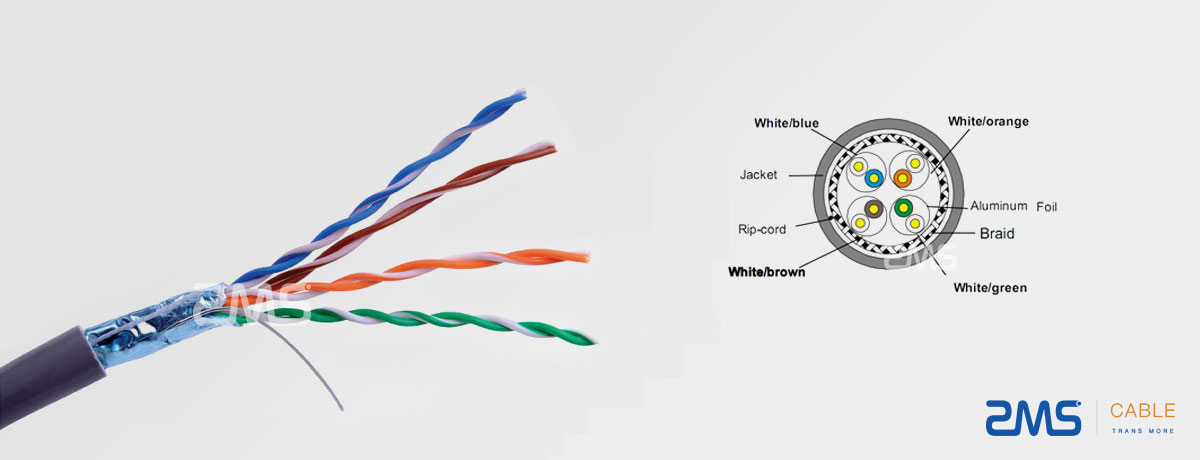

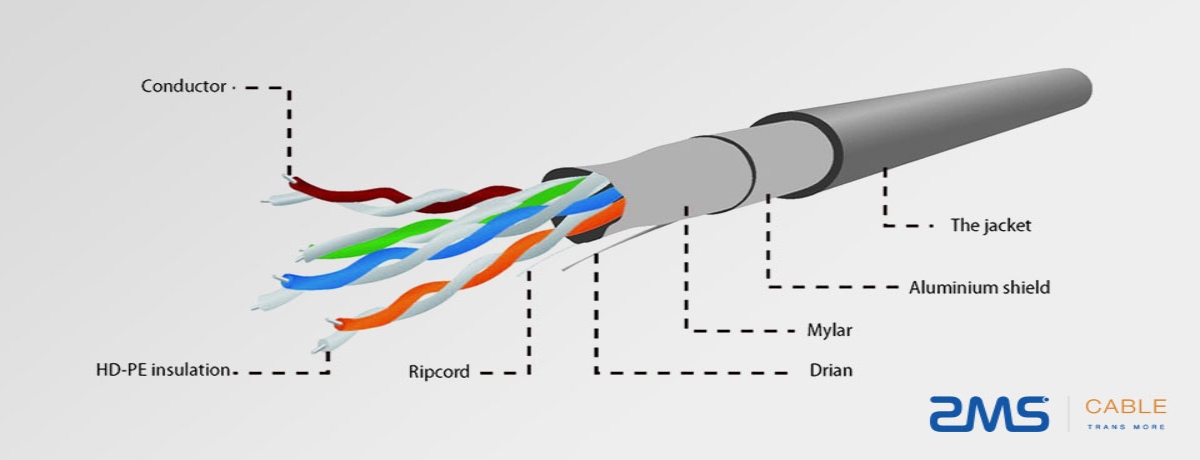

* Raw material of the conductor: solid bare copper
* Conductor Dia.: 0.585±0.003mm (23AWG)
INSULATION
* Raw material of the conductor: F-PE
* Quantity:4 twisted pairs
Color: orange white, orange green, white blue, blue white, green brown, white brown
* Insulation Dia. : 1.45±0.005mm
* Average thickness: 0.4325 mm
Minimum point thickness: 0.43mm
TWISTED PAIRS SCREEN: Aluminum Foil
OVERALL SCREEN
* Raw material of the screen: 96/0.10mm TC wire braiding
* Coverage rate:≥40%
JACKET RIP CORD: Nylon thread
SHEATH
* Sheath material: LSZH or PVC
* Nominal Dia.: 7.5 ± 0.2mm
* Average thickness: 0.65mm
* Minimum point thickness: 0.55mm
1. This kind of ZMS cable electric use bare copper to be the center conduction with the specification of 23AWG and PE to be the dielectric.
The jacket is made of fireproof material, which is meaningful to the Cat.7 communication.
2. This Cat.7 S/FTP cable conforms to the SIO/IEC, TIA/EIA, and EN standards and the electrical characteristics exceed the latest Cat.7 standards.
3. LSZH Cable: means “Low smoke zero halogens”, symbolizing environmental protection.
1. Lmpedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resistance: max:28.6/kf
4. Unbalance resistance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communication rate: 65%
1. Copper diameter: 23AWG
2. Outer diameter: 7.9+/- 0.5mm
3. Wire Lan Weight: 10.5kg/kft
4. Minimum bend radius: O.D.*4-8
5. Maximum pulling tension: 10.0
6. Jacket material: PVC/LSZH
7. Rated temperature: -20~60°C
VoIP
ISDN
Token
100M TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2GATM
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T
Rated temperature:60°C,75°C,90°C
Reference standard: UL444, UL1581
Solid bare copper conductor
PVC/LSZH jacket, RoHS/REACH compliant
LAN Cabling Standards: Comply with TIA/EIA-568-C.2-10, IEC61156-5, EN50173&IEC11801
Operating temperature:-30~+50°C
Minimum bending radius: 8D
| Cat 5E | Class 5E supports a frequency range of up to 100 MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). | Insulation: High-Density Polyethylene (HDPE), PE; Armoured: Steel wire armor (SWA); Tinned copper, Nylon; PVC, PE, LSZH; Grey, Black, Violet |
| Cat 6 | Category 6 supports a frequency range of up to 250 MHz and is designed for transmission speeds up to 1 Gigabit/sec (Gigabit Ethernet). Cat6 provides better performance and transmission reliability, especially in connections with 1000BaseT and 1000BaseTX protocols. | Solid copper (Class 1); HDPE, PE, Polyolefin; Al-foil (collective), Al-foil (individual); Low-density polyethylene (LDPE), LSZH; Black, Blue, Light blue |
| Cat 6A | 6A A very high-performance data cable designed for transfer speeds up to 10GB/sec, developed specifically for the new 10GBaseT Ethernet protocol. Class 6A offers 500MHz bandwidth and is therefore suitable for the most intensive data applications used on metal computer networks. | Solid copper (Class 1); HDPE, PE, Polyolefin; Al-foil (collective), Al-foil (individual); Low-density polyethylene (LDPE), LSZH; Black, Blue, Light blue |
| Cat 7 | Category 7 cables are very high-performance data cables designed for transmission speeds of up to 10GB per second over 100 meters and support a frequency range of up to 600MHz. They are backward compatible with Cat 5e, Cat 6, and Cat 6a and feature individual and integral shielding to meet stringent crosstalk requirements. | Solid Copper (Class 1), Stranded Copper; Foam-skin PE; Aluminium/mylar tape, Aluminium / Polyester tape (Al/PET); Tinned copper; Tinned copper wire braid (TCWB); LSZH, Polyurethane (PUR); Grey, Green |
We offer a wide range of CAT 5E cables, CAT 6 cables, CAT 6A cables, and CAT 7 cables - the attached data sheets provide the most common materials and configurations, but other materials are available upon request and our technical team can support in selecting the cable and the cable standard that best suits your application.
Our technical team has extensive experience in supporting customers in selecting the best cable for their application, and in addition to being a Cat 7 cable supplier, we can also provide a range of Cat 7 cable testing, including testing services related to third-party structured cabling and installations.
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
| Frequency; Mhz | Impedance; ohm | RL; ≥dB | Attenuation; ≤dB/100m | NEXT; ≥dB/100m |
| 4 | 100±15 | 23 | 3.7 | 65.3 |
| 10 | 100±15 | 25 | 5.9 | 59.3 |
| 16 | 100±15 | 25 | 7.5 | 56 |
| 20 | 100±15 | 25 | 8.4 | 54.8 |
| 25 | 100±15 | 25.3 | 9.5 | 53.3 |
| 100 | 100±15 | 20.1 | 19.8 | 44 |
| 200 | 100±18 | 18 | 29 | 40 |
| 250 | 100±18 | 17.3 | 32.8 | 38.3 |
| *300 | 100±22 | 16.8 | 36.4 | 37.1 |
| *500 | 100±22 | 15.2 | 48.9 | 33.8 |
| *600 | 100±15 | 14.7 | 50.2 | 60.5 |
