H03VV-F (H03VV-F) manufactured by ZMS CABLE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
Flexible cable ( H03VV-F) for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses.
Permitted frequent bending and twisting.
Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc. as long as H03VV-F is adapted to essential specifications of the device.

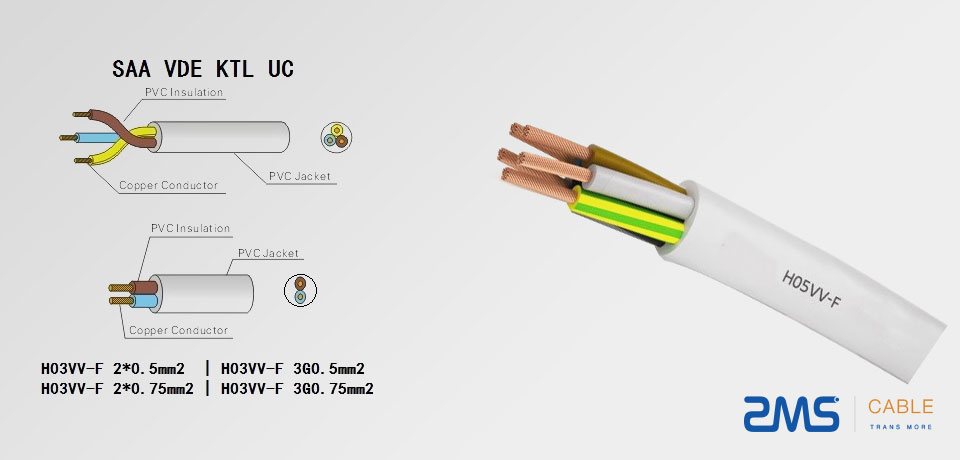

bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295
PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor
PVC compound TM2 for flexible insulated conductors acc. to DIN VDE 0207 part 5 / HD 21.1 S4
sheath colour: white or black
Related Products of Power Rubber Cable :
Copper Wire H07V-U H05V-K H07V-R H07V-F cable
| number of cores x conductor cross-section | Construction of individual conductor | External diameter | Insulation thickness | Sheath thickness | Conductor resistance at 20176;C | Cu weight | Cable weight | Packing** |
| nominal | min-max. | nominal | nominal | max. | min. | 160; | approx. | 160; |
| mm178; | n x mm | mm | mm | mm | 937;/km | kg/km | kg/km | 160; |
| 2 x 0,5 | 16 x 0,20 | 4,6 - 5,9 | 0,5 | 0,6 | 39,0 | 9,6 | 41 | c.100 |
| 2 x 0,75 | 24 x 0,20 | 4,9 - 6,3 | 0,5 | 0,6 | 26,0 | 14,4 | 48 | c.100 |
| 160; | ||||||||
| 3 G 0,5 | 16 x 0,20 | 4,9 - 6,3 | 0,5 | 0,6 | 39,0 | 14,4 | 48 | c.100 |
| 3 G 0,75 | 24 x 0,20 | 5,2 - 6,7 | 0,5 | 0,6 | 26,0 | 21,6 | 57 | c.100 |
| 160; | ||||||||
| 4 G 0,5 | 16 x 0,20 | 5,4 - 6,9 | 0,5 | 0,6 | 39,0 | 19,2 | 58 | c.100 |
| 4 G 0,75 | 24 x 0,20 | 5,7 - 7,3 | 0,5 | 0,6 | 26,0 | 28,8 | 70 | c.100 |
| 160; | ||||||||
| 5 G 0,75 | 24 x 0,20 | 7,1 | 0,5 | 0,6 | 26,0 | 36,0 | 87 | c.10 |
| number of cores x conductor cross-section | Construction of individual conductor | External diameter | Insulation thickness | Sheath thickness | Conductor resistance at 20176;C | Cu weight | Cable weight | Packing** |
| nominal | min-max. | nominal | nominal | max. | min. | 160; | approx. | 160; |
| mm178; | n x mm | mm | mm | mm | 937;/km | kg/km | kg/km | 160; |
| 2 x 0,5 | 16 x 0,20 | 4,6 - 5,9 | 0,5 | 0,6 | 39,0 | 9,6 | 41 | c.100 |
| 2 x 0,75 | 24 x 0,20 | 4,9 - 6,3 | 0,5 | 0,6 | 26,0 | 14,4 | 48 | c.100 |
| 160; | ||||||||
| 3 G 0,5 | 16 x 0,20 | 4,9 - 6,3 | 0,5 | 0,6 | 39,0 | 14,4 | 48 | c.100 |
| 3 G 0,75 | 24 x 0,20 | 5,2 - 6,7 | 0,5 | 0,6 | 26,0 | 21,6 | 57 | c.100 |
| 160; | ||||||||
| 4 G 0,5 | 16 x 0,20 | 5,4 - 6,9 | 0,5 | 0,6 | 39,0 | 19,2 | 58 | c.100 |
| 4 G 0,75 | 24 x 0,20 | 5,7 - 7,3 | 0,5 | 0,6 | 26,0 | 28,8 | 70 | c.100 |
| 160; | ||||||||
| 5 G 0,75 | 24 x 0,20 | 7,1 | 0,5 | 0,6 | 26,0 | 36,0 | 87 | c.10 |
