Today, transportation is becoming more and more advanced and people are demanding more and more from their travel.

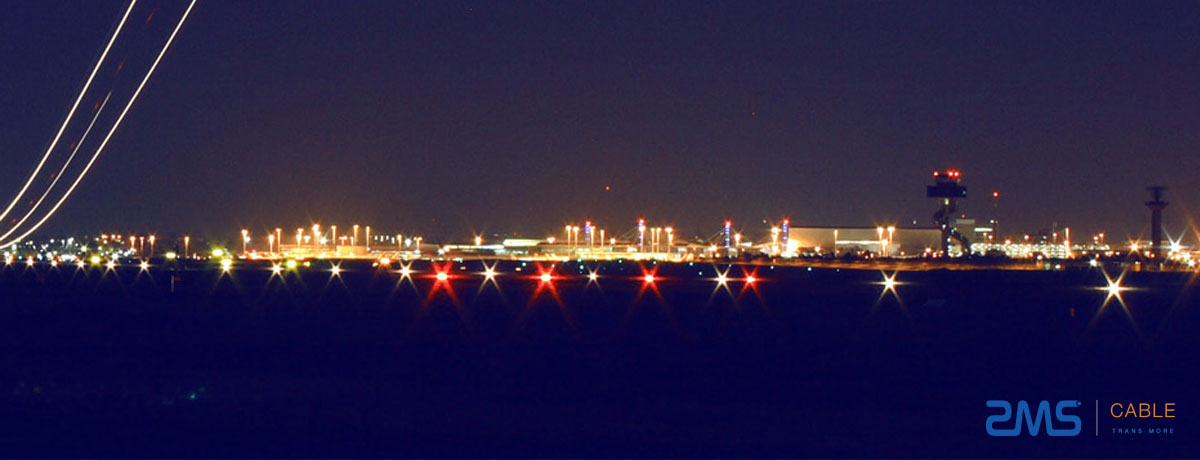

Whether it is business or vacation travel, professional defense requirements, or civilian and military airports, it is vital to ensure the smooth and safe operation of airports.
ZMS Airport Lighting Cable has developed a range of solutions that can withstand water, UV, oil, and grease to ensure the continuous and stable operation of the lighting systems of airport runways, taxiways, and airport buildings.
And our airport cable solutions cover the full range of services from cable design to meet specific application requirements and national standards to international logistics to the field.
Airport Lighting Cable, Wholesale Various High-Quality Airport Lighting Cable Products from Global Airport Lighting Cable Suppliers and Airport Runway Lighting Cable Factory, Importer, and Exporters.
Type: Insulated
Application: Underground
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: PVC
Color: Green Blue Red Grey Black or as your request
Voltage: 300/500V 450/750V
Copper Material: Annealed Copper wire
Insulation Material: PVC XLPE PE LSZH EPR EPDM HDPE
Sample: Sample in stock
Standard: IEC 60502, IEC 332-3, IEC 60228, FAA AC 150/5345-7E
Construction
Conductor: Stranded bare copper conductor, IEC 60228 class 2
Inner Semi-Conductor: Extruded semi-conducting compound
Insulation: XLPE
Outer Semi-Conductor: Extruded semi-conducting compound
Shield: Two copper tapes
Outer Sheath: PVC/HDPE
Electrical Data
Operating Voltage: U0 5KV
Test Voltage: 20000 V AC, according to IEC TS 62100
Partial Discharge Level Test: 5000 V, no partial discharge
Operation Temperature: -40℃ to + 90℃
Permissible Short Therm: +250℃
Lowest Ambient Temperature: -60℃
Bending Radius: Static installation >9 × outer radius
These are single conductor 5000-volt nonshielded power cables suitable for underground installation for use as airport lighting circuits per FAA L-824 Type B.
They are rated for use at 90°C in dry conditions.
FAA L-824 cables are suitable for use in conduit, duct, aerial, and direct burial installations up to 5000 volts. The CPE jacket offers additional protection from de-icing fluids.
Construction
Conductor: Stranded bare or tinned copper conductor
Insulation: EPR
Outer Semi-Conductor: Extruded semi-conducting compound.
Out Sheath: HDPE/PVC
Electrical Data
Operating Voltage: U0 5KV
Test Voltage: 20000 V AC, according to IEC TS 62100
Partial Discharge Level Test: 5000 V, no partial discharge
Operation Temperature: -40℃ to + 85℃
Permissible Short Therm: +250℃
Lowest Ambient Temperature: -60℃
Bending Radius: Static installation >12 × outer
Standard: FAA L-824 Type B, ICEA S-96-659, NEMA WC71
Applications
H07RN-F Cables are 450/750V Special Cross-linked Elastomer. H07RN-F cables are used for connection between transformers and airfield lighting cables equipment.
Standard: NF C 32-102-4, HD 22-4
Construction
Conductor: Stranded bare copper
Insulation: Special cross-linked elastomer / EPR
Sheah: Special cross-linked elastomer / EPR
Electrical Data
Operating Voltage: U0 450/750V
Maximum Conductor Temperature: 85℃
Short Circuit Temperature: 200℃
Operation Temperature: -20℃ to + 85℃
Minimum Bending Radius: Static: 4×OD; Dynamic: 8×OD
Light cable
Professional manufactuer
Big production capacity
ISO9001&CCC
Sample in stock
Our company's recent projects include the supply of low-voltage underground electrical cable for airport lighting to the Genghis Khan International Airport in Mongolia, and low-voltage cable projects tailored to the specific needs of Australia.
Abrasion-resistant, Oil resistant, UV-resistant, Deicer resistant (FR/KAc), Halogen-free
Service temperature: -40 ... +85 °C (for a max. current of 6.6 A)
Min. bending radius: 12x outer diameter
Max. pulling force: copper cross-section (in mm2) x 50 N/mm2
Min. laying temperature: -10 °C
As professional airport lighting suppliers, if you don’t know how to choose the products?you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly.
ZMS cable supplier has several quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
| Cross-section | Conductor assembly | Insulation thickness mm | Screen tape mm | Sheath thickness mm | Overall diameter mm | Weight kg/km |
| 1×6mm2 | 7-stranded | 2.3 | 0.08 x 22 | 1.14 | 11.2 | 170 |
| 1×AWG8 | 7-stranded | 2.3 | 0.08 x 22 | 1.14 | 11.6 | 200 |
| Cross-section mm2 | Conductor resistance | Voltage test kV-min | Insulation resistance MΩ.km@ 15.6 °C | Partial discharge pC@ 4 kV |
| 1×6mm2 | <3.11 | 35-15 | >2220 | <=5 |
| 1×AWG8 | <2.18 | 35-15 | >2060 | <=5 |
