Armoured Instrumentation Cable is applicable to control cable products for instrumentation with AC-rated voltage 450/750V and below.
The shielded cable for the roving detection device adopts a twisted aluminum-plastic composite film shield and copper wire braid shield with superior anti-interference performance, which is widely used in computer measurement and control devices.
And armored instrumentation cables are also widely used between inverter power supplies and inverter motors.
The armored LSZH version is generally used when there is an increased risk of mechanical damage, and the galvanized steel wire armor provides excellent protection.
ZMS Cable company mainly provides complete supply services for distributors and suppliers all over the world. Consulting services, purchasing services, transportation services, and after-sales services are included.
This kind of Armoured Instrument Cable is suitable for instruments and other electrical equipment in the signal transmission and control circuit. The armored Instrument cables are generally used for outdoor installation and are suitable for wet and damp areas.
BS / PAS 5308, BS EN 60228, BS 6234, BS EN 50363, BS EN / IEC 60332-1, BS EN / IEC 60332-3-24

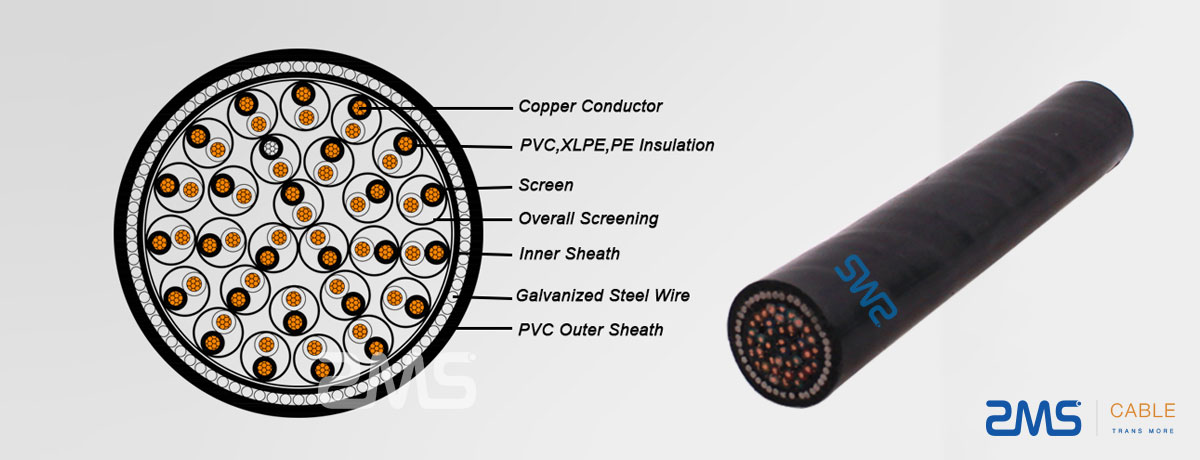

Conductor: Annealed or tinned copper
Insulation: XLPE (cross-linked polyethylene) or PE
Pairing: Two insulated wires are twisted together uniformly, and the laying distance does not exceed 100 mm
Binding Tape: PETP transparent tape
Collective Shielding: paste aluminum/polyester tape on paired metal pairs and make contact with tinned copper drain wire, thickness 0.5 mm ^ 2
Inner Sheath: LSZH (Low Smoke Zero Halogen) Sheath
Amour: Galvanized steel armor
Cable Outer Sheath: LSZH (Low Smoke Zero Halogen) Sheath is flame retardant, conforms to IEC60332-3-22, halogen-free, conforms to IEC60754-1, low smoke emissions, conforms to IEC61034-1-2
Sheath Color: black or blue
AC Rated Voltage: Uo/U 450/750V
Maximum Working temperature: not more than 70℃
Laying Temperature: not less than 0℃.
Allowable Bending Radius: 10 times the outer diameter of the cable for non-armored cable at least; copper tape shield or steel tape armored cable is at least 12 times the outer diameter of the cable.
KJYVP polyethylene insulated PVC sheathed braided shielded instrumentation control cable
KJYVPR polyethylene insulated PVC sheathed braided shielded instrumentation control flexible cable
KJYVP2 polyethylene insulated PVC sheathed copper tape shielded instrumentation control cable
KJYVP2R polyethylene insulated PVC sheathed copper tape shielded instrumentation flexible cable
KJYVP3 polyethylene insulated PVC sheathed aluminum-plastic composite film shielded instrumentation control cable
KJYVPR Polyethylene-insulated PVC sheathed aluminum-plastic composite film shielded instrumentation flexible cable
KJYVP polyvinyl chloride insulated PVC sheathed braided shielded instrumentation control cable
KJYVPR polyvinyl chloride insulated PVC sheathed braided shielded control flexible cable for instrumentation
KJYVP2 polyvinyl chloride insulated polyvinyl chloride sheathed copper tape shielded instrumentation control cable
KJYVP2R polyvinyl chloride insulated polyvinyl chloride sheathed copper tape shielded instrumentation flexible cable
KJYVP3 polyvinyl chloride insulated polyvinyl chloride sheathed aluminum-plastic composite film shielded instrumentation control cable
KJYVPR polyvinyl chloride insulation PVC sheathing aluminum-plastic composite film shielding instrumentation control cable
| Conductor | Annealed or tinned copper, sizes: 0.5mm2 and 0.75mm2 mulitistranded(Class 5), |
| 0.5 mm2, 1.0 mm2 solid(Class 1), 1.5mm2 or 2.5mm2, multistranded(Class 2) to BS6360 | |
| Insulation | PE (Polyethylene) type 03 to BS6234 |
| Pairing | Two or three insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Colour code | See technical information |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2 |
| Outer sheath | PVC Sheath, type TM 1 or type 6 to BS 6746 |
| Sheath colour | Black or blue |
