Copper Conductor Low Voltage Power Cable/ XLPE PVC Power Cable

Copper Conductor Low Voltage XLPE Insulated Armoured Power Cable

Application:

PVC/XLPE copper power cables are used to transmit and distribute power in the power transmission and distribution system.

It is generally applied to fields including power, construction, mines, metallurgy, petrochemical industry, and communication in the complete replacement of oil immersed paper insulated power cables and in partial replacement of PVC-insulated power cables.

Here is the introduction of low voltage power cables, according to the cable classification, there are also high-voltage and medium-voltage cables.



0.6/1 kV STA PVC power cable,SWA Armoured XLPE Power Cable,xlpe insulated power cable


Content of XLPE PVC Copper Power Cable:


CU Cable Meaning

XLPE cable / Copper conductor power cable, Low voltage Copper armored XLPE power cable is included the following:


The products are mainly complying with IEC 60502 standards.

And also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.

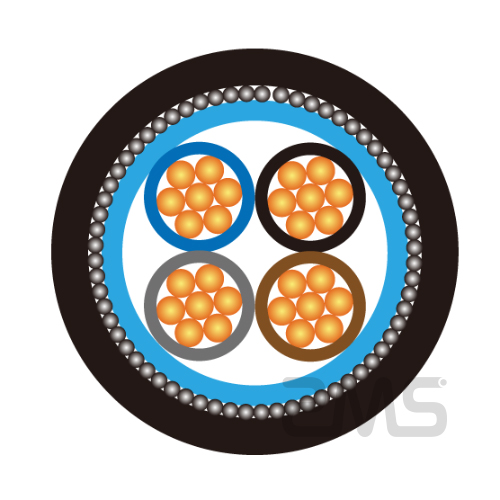

0.6/1KV kV multi-cores / copper conductor / XLPE insulation/copper tape or copper wire screen / galvanized steel wire armored / PVC copper cable or PE sheath power cable.

This cable can be installed in a duct, tray, or direct burial.

It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.


The XLPE-insulated power cable has several advantages over paper-insulated and PVC-insulated cables.

XLPE cable has high electric strength, mechanical strength, high-aging resistance, environmental stress resisting antichemical corrosion, and it is a simple construction, using convenient and higher operating of long term temperature.

It can be laid with no drop restriction.


Various flame-retardant and non-flame-retardant XLPE cables can be manufactured with three technology (peroxide, silane, and irradiation cross-linking).

The Flame-Retardant cable covers all kinds of low-smoke low-halogen Low-Smoke Halogen-Free, and non-smoke non-halogenated and three classes A, B, and C.

XLPE lv power cable has a higher long-term working temperature and more excellent current rating, at the same environment XLPE cable may be reduced in size (nominal cross-section) 1 or 2 class in comparison with paper and PVC cable.

This not only improves the quality and properties of products but also reduces cable production costs.

Some of the special XLPE cables can be manufactured according to the other standards required by customs.

Standards:

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, and ICEA upon request

Installation:

The installation temperature should not be over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.

The bending radius of the cable should not be less than 8 times.

After installation, the cable should withstand a voltage test for 15min. 3.5kv D.C.

Advantage:

Excellent electric and mechanical characteristics

Simple in structure, Convenient to use

Reduce costs

Packing And Shipping of ZMS Power Cable:

We are capable of meeting the most strict delivery schedules according to purchase orders.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

The cable is supplied in wooden reels, corrugated boxes, and coils.

Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of the drum according to the customer's requirement.

0.6/1 kV STA PVC power cable,SWA Armoured XLPE Power Cable,xlpe insulated power cable

FAQ:

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables, and more are free from defects. We will take back any product that does not meet the agreed quality by both parties.

The specific terms are as follows:

We guarantee that we will comply with the requirements of the warranty period specified in the contract and that the goods supplied under the purchase order for the Procurement of self-carrying distribution networks cable and wire.

We will be manufactured under this specification and the Goods will be new, unused, of the most recent or current models.

Once selected, we will supply the Goods strictly according to the Contract's requirements.

The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case may be, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

During the warranty, the period purchaser may proclaim directly to the manufacturer in written form or by the agent if there is any problem with the Good's quality.

The manufacturer will do the repair or replacement in a reasonable time and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable are our forte, however, we also sell connectors, cable assemblies, and cable tools to name just a few. Our products serve numerous markets all over the world.

After-Service Commitment:

ZMS Cable (Group) possesses ZMS cable tenet Strives for the Best Enterprise, Produces the Best Product, Provides the Best Service, Establishes the Best Brand, insists on the policy of quality first, and endeavors to achieve high quality and zero defects of goods.

Therefore, every client could benefit from ZMS Cables' superior quality and faultless service.

Meanwhile, we observe the ZMS cable spirit of Do Best, Mutually Win, wishing to establish long-term and stable relationships with every client.


Hereby, we guarantee that:


Customer is God: We will cherish every client, and every cooperation by heart.

Free pre-sales service: We will provide the best proposal for each client.

Good sales service: We will provide free relative product operation, maintenance tips, and installation commissioning technical advisory service when establishing cooperation relationships with clients.

Thoughtful after-sales service: Our products are warranted by PICC (Peoples Insurance Company of China). We will provide free maintenance and debugging within 12 months after installation (except for the wrong use).

24-hour hot-line telephone service: We will appoint a professional person to answer your question timely.


We always firmly believe that Quality is life line, and Service is laissez-passer, which will make us closer and tight!

ZMS Cable Co., Ltd.



Technical Data of PVC XLPE Insulation Power Cable:

Max. working; temperature:70 °c for PVC; insulation and 90 °c for XLPE insulation
Max. temperature:
160°c (PVC; insulation), 250°c (XLPE insulation)
Conductor:class 1 and 2 copper
The shape of the conductor:circular and sectional
The shape of the conductor:circular and sectional
Sectional area:1.5 - 500mm2
Insulation:PVC / XLPE
No. of cores:1,2,3,4,5,6
Armour:steel wire or steel tape is available
Sheath:PVC
Filler:Polypropylene lament with lapped binding tape
Core-covering:Binding tape
Min. bending radius:15 times cable radius (single-core), 12 times cable radius (multi-cores)


Power Cable

Power cables are used to transmit and distribute electrical energy. Power cables are commonly used in urban underground power grids, power station lead-out lines, power supply within industrial and mining enterprises, and over-the-river transmission lines.
